Ceramic Fiber Baffle Board - Replacement Baffle Board - 832-3520 - Quadra fire Stove & Insert 4100I- ACT Bodega Bay - 2300F - BB - 125185

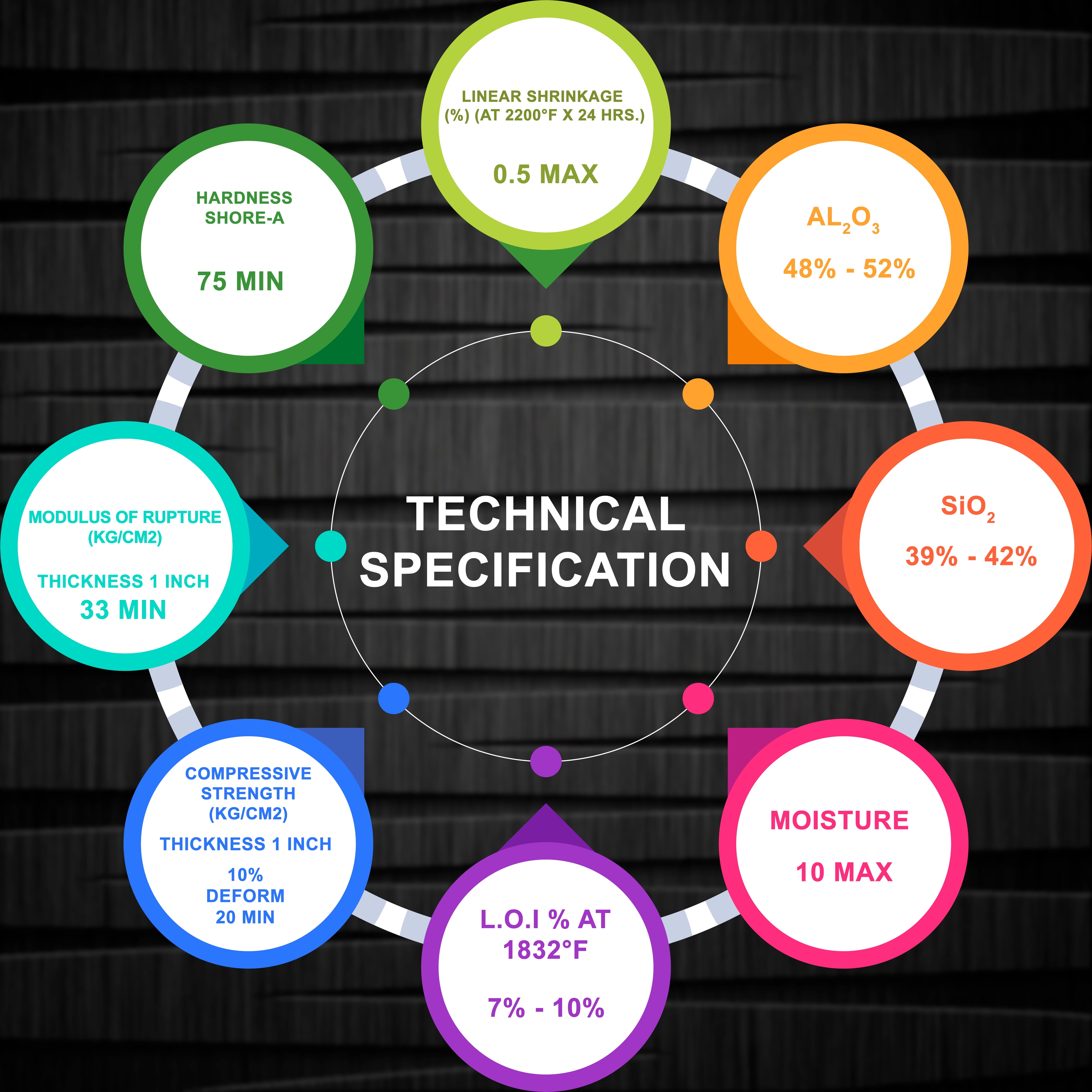

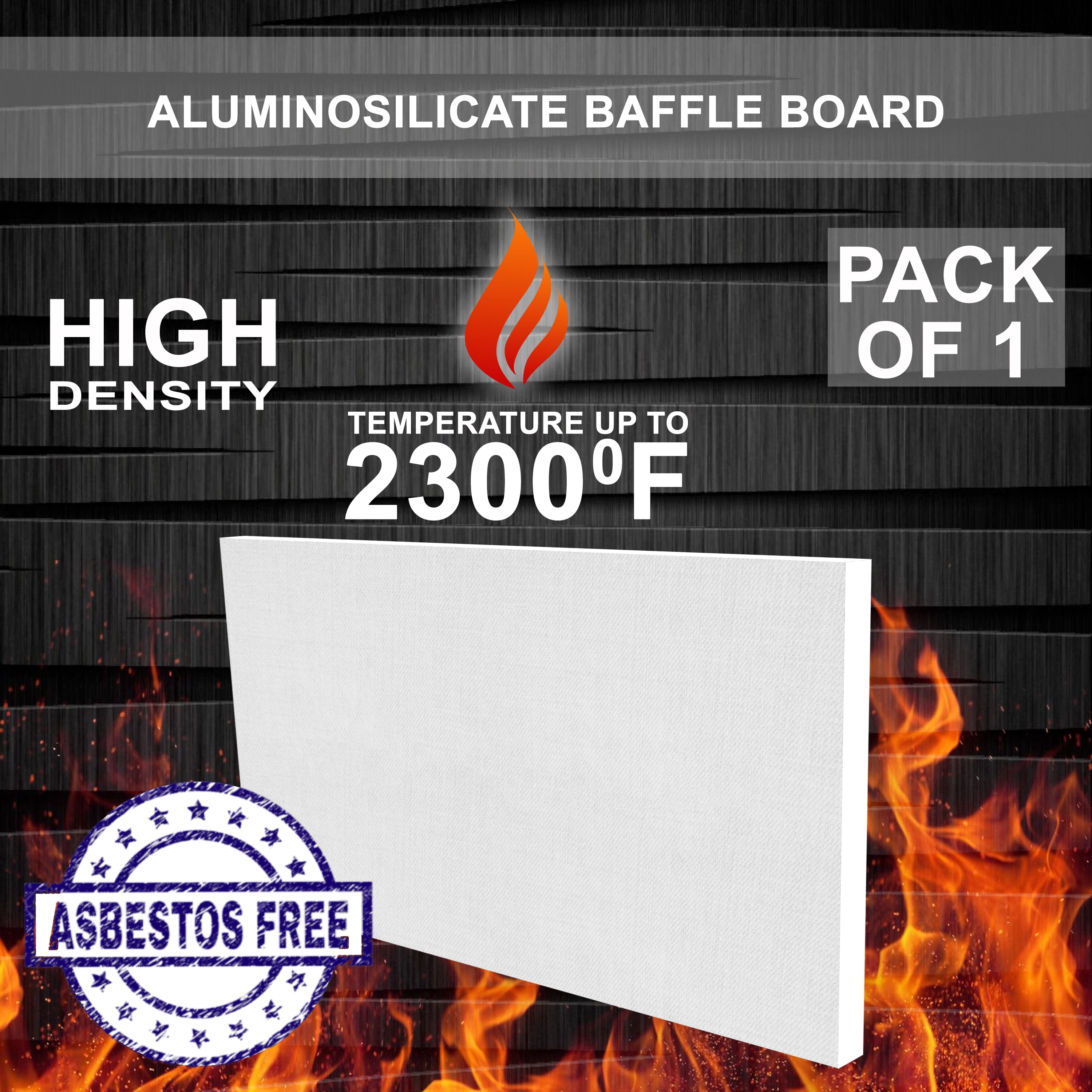

A ceramic baffle board is an ideal alternative for replacing your stove baffle. Compared to other ceramic fiberboards, this ceramic fiber Baffle Board is designed specifically for applications requiring low thermal conductivity, high compressive strength, and modulus of rupture with greater resistance to corrosion by hot gases. This board has a slight odor during initial firing until the organic binders are burned off. After that, it will be pure white and odorless. Ceramic Insulation Board is rated up to 2300F (1260C) peak and 2100F (1149C) continuous use with a melting point of 3200F(1760C). It has been pre-surface treated, which makes it more robust and dust-free. •These pre-cut baffle boards measure 0.5" x 12.5" x 18.5" (approx.) and can be used to replace the Quadra fire baffle, but it can also be used for any other heat resistant purpose. This board can be cut to any shape and size using a small toothed hacksaw blade, knife drill, and machine. This board is not as strong as firebrick. Density: 45 Pcf (Min). Linear Shrinkage: 0.5 % Max (at 2192 °F x 24 Hrs.) Modulus of Rupture: 469 PSI (Min.) for 1” Thickness Compressive Strength: 284 PSI (Min) at 10% deformation You will either need a new ceramic fibre blanket or an existing blanket that was installed with the stove and is in good condition to complete this baffle kit. If you need a new one, come to our store; we have a variety of sizes of ceramic fiber blankets.

• • Replacements: 1 pcs Refractory Ceramic Fiber Baffle Board replacement part of Quadra-Fire # 8323520
• Replacements: 1 pcs Refractory Ceramic Fiber Baffle Board replacement part of Quadra-Fire # 8323520

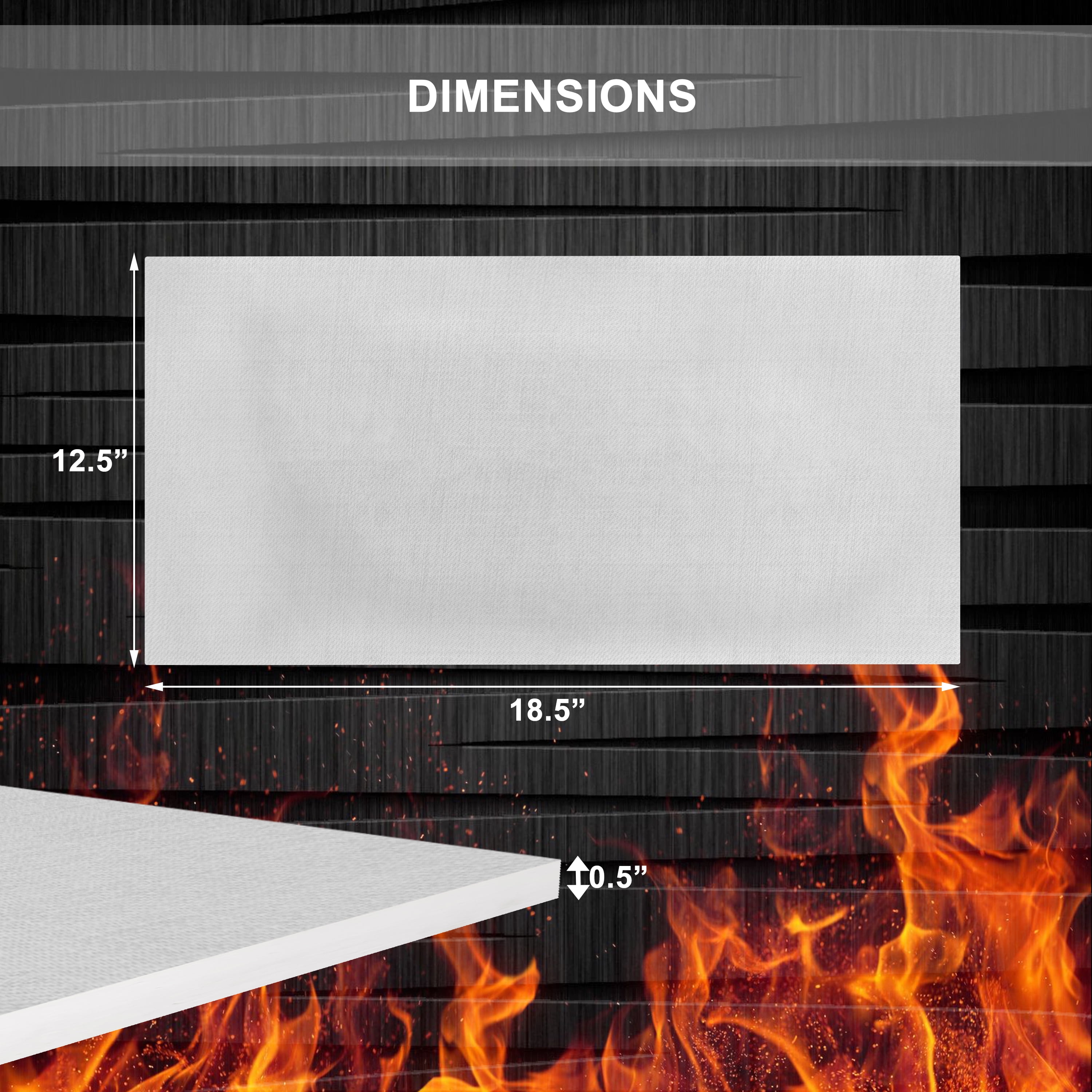

• • Each Simond Store Baffle Board measures 0.5” (T) x 12.5” (W) x 18.5” (L) Approx.
• Each Simond Store Baffle Board measures 0.5” (T) x 12.5” (W) x 18.5” (L) Approx.
• • Compatibility: Quad afire 4100I-ACT, Quad afire - Bodega Bay Insert
• Compatibility: Quad afire 4100I-ACT, Quad afire - Bodega Bay Insert

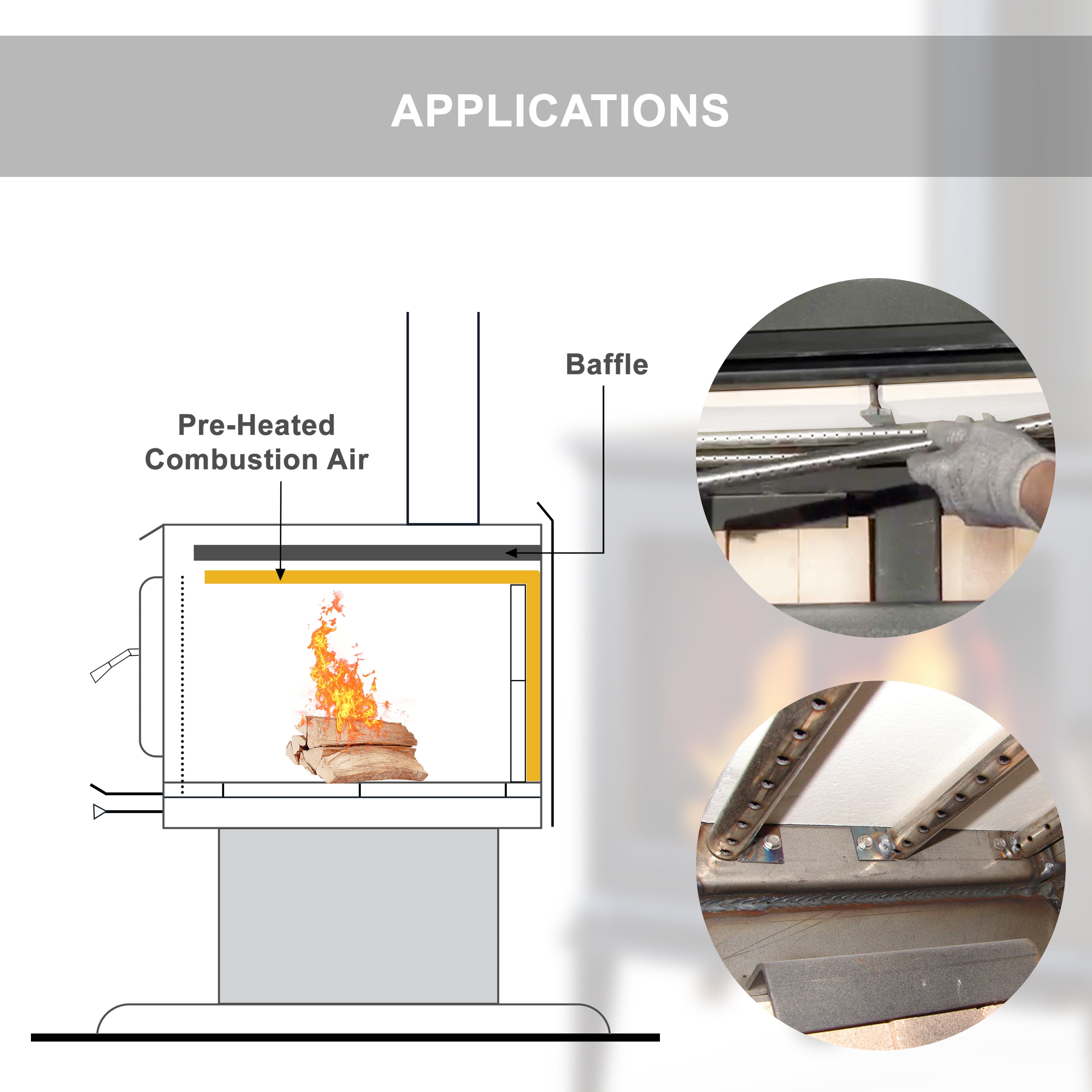

• • Purpose: To replace burned and worn out baffles Inside the firebox, on top of the secondary air tubes. - The pre-cut size baffle is simple to replace, Its high heat resistance features help to keep warm air and waste gases inside the firebox for longer, allowing the burning fuel to produce even more heat
• Purpose: To replace burned and worn out baffles Inside the firebox, on top of the secondary air tubes. - The pre-cut size baffle is simple to replace, Its high heat resistance features help to keep warm air and waste gases inside the firebox for longer, allowing the burning fuel to produce even more heat
• • Material: This high-temperature dense and low-thermal-conductivity ceramic baffle is composed of refractory ceramic fibers and specialty clay-based minerals, and has unique features such as compressive strength, hot gas erosion resistance, and durability. It can withstand temperatures of up to 2300°F
• Material: This high-temperature dense and low-thermal-conductivity ceramic baffle is composed of refractory ceramic fibers and specialty clay-based minerals, and has unique features such as compressive strength, hot gas erosion resistance, and durability. It can withstand temperatures of up to 2300°F
